B. Skillable-Based Setup

This is the start of the instructor-guided track for this workshop. We use the Skillable VM - a lab-on-demand platform with a built-in Azure subscription and pre-provisioned resources - to give you a fast start.

WERE YOU LOOKING FOR THE SELF-GUIDED OPTION INSTEAD? You can find that here.

1. Launch Skillable VM

To continue with Skillable-based Setup, you will need the Lab Launch URL (link or QR Code) given to you by your instructor at the start of the session. On completing this step, you should have:

  • The Skillable VM tab open, with the Azure subscription details shown.
  • The Skillable countdown timer visible, with at least 1h 15 mins remaining.
  • The Deploy button clicked, and showing a Successful completion message.
  • This instruction guide open, with this section in focus.

If you already completed these steps in-venue with instructor help, then skip ahead to Step 2. Otherwise, expand the section below to complete the task now.

GET STARTED: Launch Skillable VM, Click Deploy Button, Open Workshop Guide

The lab instructor should have shared a Skillable Lab link (URL or QR Code).

  • Open the browser and navigate to the link - locate LAB401 in the page.
  • Click the Launch button - wait till the launched page completes loading.
    • (Left) You will see a login screen - we can ignore this for now
    • (Top Right) You will see a countdown timer - it should start at 1hr 15 mins.
    • (Below that) You will see a Deploy button - we will use this, next.
    • (Below That) You should see the instructions panel - we'll validate this, after.
  • Click the Deploy button - wait till the loading progress icon stops.
    • This triggers a background task to deploy our application to Azure
    • This step can take a few minutes to complete
    • When done, you should see a "Success" dialog below the button.
    • Note: The dialog may use a red background to alert you - this does not imply failure!
  • Review other Instructions Panel details:
    • Check the lab title - should be Build a Retail Copilot Code-First on Azure AI
    • Check the Azure subscription - should have username & password details filled in
    • Check the Workshop guide link - should open to a hosted version of this guide.

Leave the Skillable tab open in your browser. We'll use the Azure credentials in the next step. And we'll revisit this tab at the end, to complete lab teardown. You can also track remaining lab time in the countdown timer.

2. Launch GitHub Codespaces

The Contoso Chat sample repository is instrumented with a dev container which specifies required tools and dependencies. Simply launch this from GitHub Codespaces to get a pre-built development environment with a Visual Studio Code editor and Python runtime ready to go.

At the end of this step you should have:

  • Launched GitHub Codespaces to get the pre-built dev environment.
  • Forked the sample repo to your personal GitHub profile.
  • Verified that required command-line tools were installed.

2.1 Navigate to GitHub & Login

  1. Open a browser tab (T1) and navigate to the link below.

    In codeblocks like this, click the icon (far right) to copy text to clipboard!

    1
    https://aka.ms/contoso-chat/prebuild

  2. You will be prompted to log into GitHub. Login now

2.2 Setup GitHub Codespaces

  1. You will see a page titled "Create codespace for Azure-Samples/contoso-chat"

    • Check that the Branch is msignite-LAB401
    • Click dropdown for 2-core and verify it is Prebuild ready

    Using the pre-build option makes your GitHub Codespaces load up faster.

  2. Click the green "Create codespace" button

    • You should see a new browser tab open to a link ending in *.github.dev
    • You should see a Visual Studio Code editor view loading (takes a few mins)
    • When ready, you should see the README for the "Contoso Chat" repository

    The README is for information only. Please continue to follow this guide for the workshop.

2.3 Fork Repo To Your Profile

Your GitHub Codespaces is running on the original Azure Samples repo for this sample. Let's fork this now, so we have a personal copy to modify and reviist. We will use the GitHub CLI to complete this in just a few quick steps!

  1. Open the VS Code terminal and run this command to verify the GitHub CLI is installed.

    1
    gh --version

  2. Next, run this command to authenticate with GitHub, with scope set to allow fork actions.

    1
    GITHUB_TOKEN="" gh auth login --hostname github.com --git-protocol https --web --scopes workflow

    The command ensures we complete the auth workflow from the web browser using the Git protocol over a secure HTTPS connection, and scope limited to workflow actions. Using an empty GITHUB_TOKEN ensure we don't use an existing token with broader scope.

  3. Follow the prompts to complete auth flow. (Expand the sections below for an example)

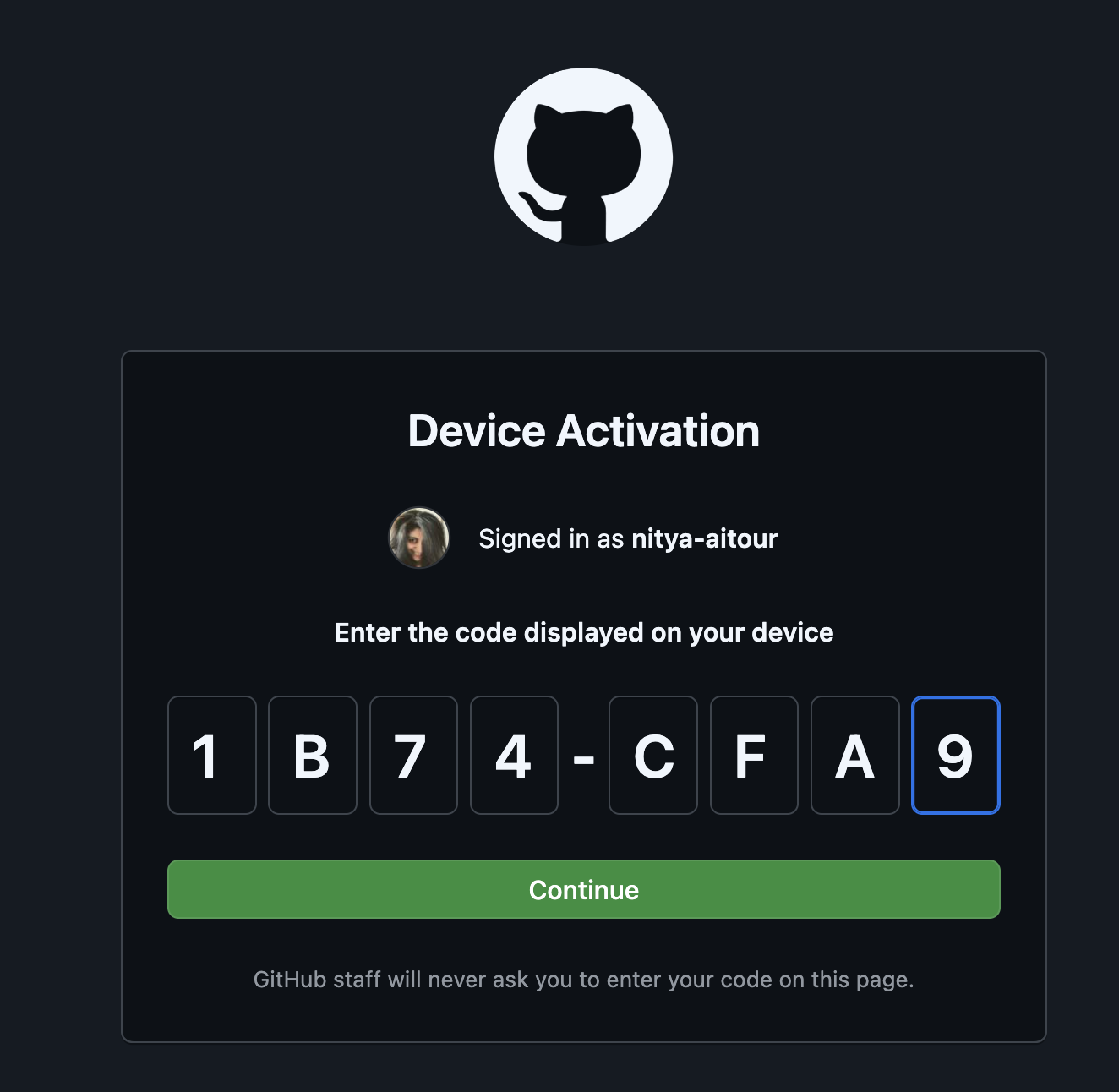

    1. Complete Device Activation flow
    • Say "Yes" when prompted to authenticate with GitHub credentials
    • Copy the one-time code provided in the console
    • Press "Enter" to open the Device Activation window

    • Copy the code into that window as shown below

      Here is an example of what that looks like:

      Activation

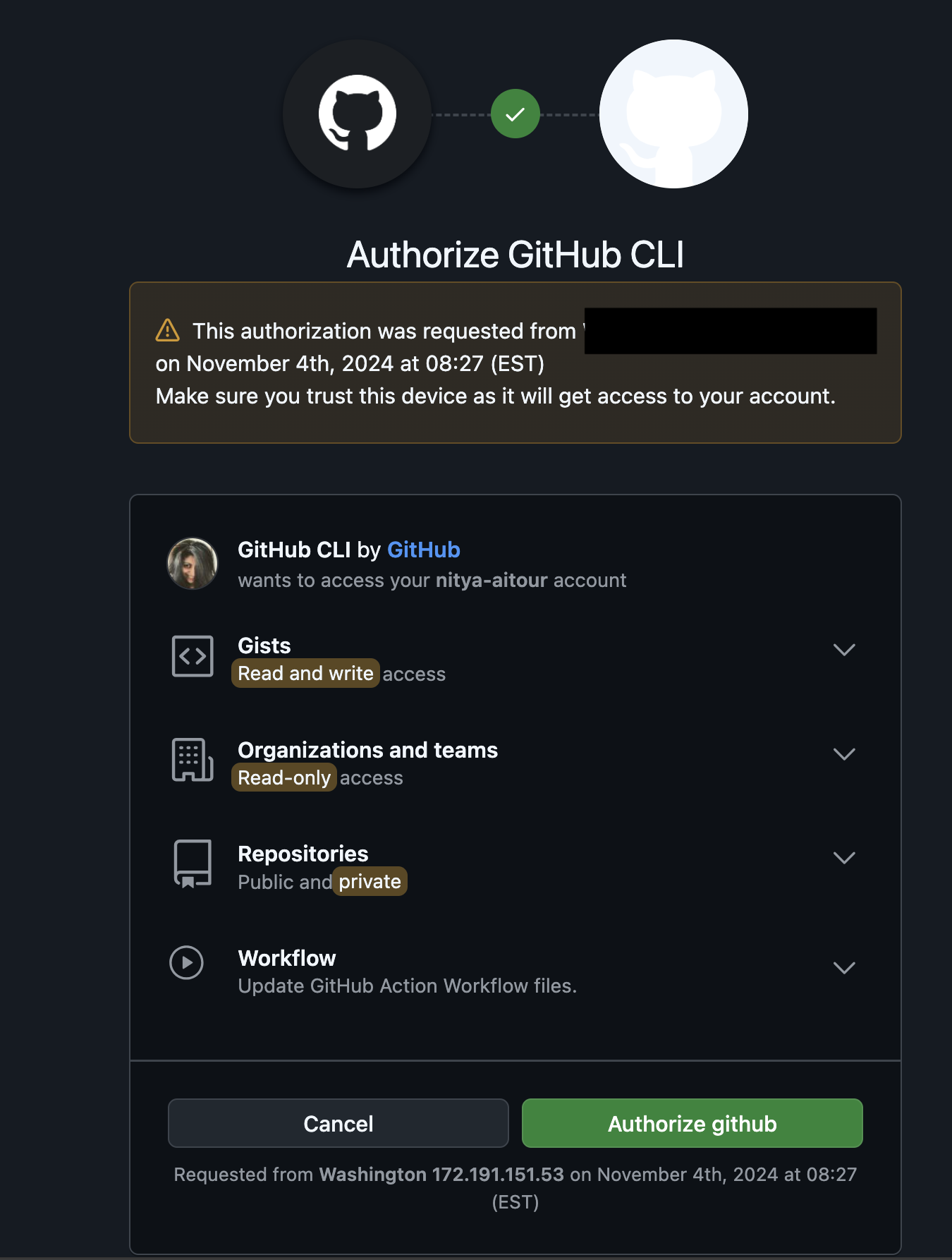

    2. Confirm GitHub authorization scope
    • You should see this authorization dialog on activation
    • Click the green "Authorize github" button to continue

    • This gives the GitHub CLI (this session) permission to do the fork

      Activation

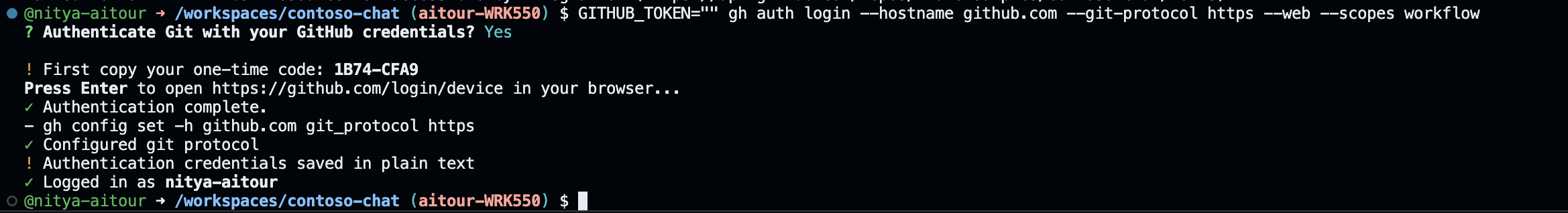

    3. Verify you are Logged in.

    • The console log should show you are logged in successfully

      Activation

  4. Now, run this command to fork the repo.

    1
    GITHUB_TOKEN="" gh repo fork --remote

    You should see a Created fork.. followed by an Added remote origin .. message. On completion, you should have a fork of the repo in your personal profile and your local Codespaces environment will now be setup to commit changes to your fork.

  5. Optional. Visit your GitHub profile and check that the fork was created. It should be at the location in the form https://github.com/<username>/contoso-chat where <username> should be replaces by your GitHub profile.

2.4 Check Tools Installed

Use the following commands in the VS Code terminal to verify these tools are installed. This step is optional but gives you a sense for the command-line tools we will use in this lab.

1
python --version

1
fastapi --version

1
prompty --version

1
az version

1
azd version

CONGRATULATIONS. You setup your GitHub Codespaces with your fork of the repo!

3. Authenticate with Azure

To access our Azure resources, we need to be authenticated from VS Code. Make sure the Terminal pane is active in the GitHub Codespaces tab. Then, complete both the steps below (click each to expland for instructions).

1. Authenticate with az for post-provisioning tasks

  1. Log into the Azure CLI az using the command below.

    1
    az login --use-device-code

  2. Copy the 8-character code shown to your clipboard, then control-click the link to visit https://microsoft.com/devicelogin in a new browser tab.

  3. Select the account with the Username shown in the Skillable Lab window. Click "Continue" at the are you sure? prompt, and then close the tab

  4. Back in the Terminal, press Enter to select the default presented subscription and tenant.

2. Authenticate with azd for provisioning & managing resources

  1. Log into the Azure Developer CLI using the command below.

    1
    azd auth login --use-device-code

  2. Follow the same process as before - copy code, paste it when prompted, select account.

  3. Note: you won't need to enter the password again. Just select the Skillable lab account.

CONGRATULATIONS. You are logged in from Azure CLI and Azure Developer CLI

4. Configure Env Variables

To build code-first solutions, we will need to use the Azure SDK from our development environment. This requires configuration information for the various resources we've already provisioned for you in the francecentral region. Let's retrieve those now.

  1. Run the commands below in the same Visual Studio Code terminal.

    1
    azd env set AZURE_LOCATION francecentral -e AITOUR --no-prompt

    1
    azd env refresh -e AITOUR

    (Press ENTER to select the default Azure subscription presented).

  2. Verify the environment variables were refreshed.

    The above commands will have created a .azure/AITOUR/.env file in your GitHub Codespaces environment with all the configuration information we will need to build our app. You can open the file from the VS Code file explorer or you can run the command below to view the values in the terminal:

    1
    azd env get-values

    Note that the .env file does not contain any secrets (passwords or keys). Instead, we use Azure Managed Identities for keyless authentication as a security best practice

5. Do Post-Provisioning

We can now use these configured tools and SDK to perform some post-provisioning tasks. This includes populating data in Azure AI Search (product indexes) and Azure Cosmos DB (customer data), and deploying the initial version of our application to Azure Container Apps.

Return to the Visual Studio Code Terminal above:

  1. Run the command below. (This will take a few minutes to complete.)

    1
    bash ./docs/workshop/src/0-setup/azd-update-roles.sh

    We pre-provisioned the Azure resources for you using a service principal. In this step, we update the resource roles to allow user access so you can populate data in Azure AI Search and Azure Cosmos DB from code. This step is not required in self-guided mode where you provision all resources yourself.

  2. Once complete, run the command below. It will take a few minutes to complete.

    1
    azd hooks run postprovision

    This step runs the Jupyter Notebooks found in the relevant data/ subfolders, populating the Azure AI Search and Azure CosmosDB resources with product catalog (index) and customer profile (orders).

    This step should take just a few minutes to complete from the commandline.

CONGRATULATIONS. Your Skillable-based Setup is Complete! We'll Validate this, next!
